サイズ表

スーパートルクG (S2M)

標準ベルトサイズ S2M

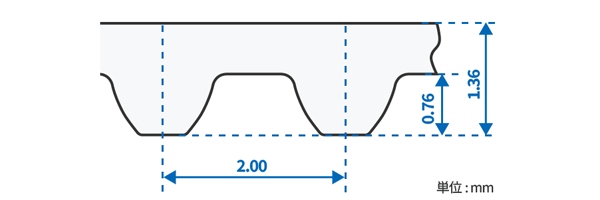

スーパートルクG S2M 歯形

標準ベルト幅

ベルト呼び幅 40 60 100
ベルト幅(mm) 4 6 10

製品コード

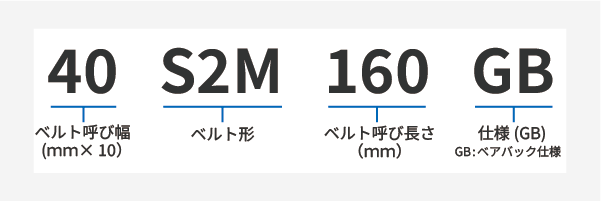

スーパートルクG S8M 製品コード

プーリ

標準ベルトサイズ表

ベルト呼び長さ 歯数 ベルトピッチ周長(mm)
S2M66 33 66
S2M72 36 72
S2M74 37 74
S2M76 38 76
S2M78 39 78
S2M80 40 80
S2M82 41 82
S2M84 42 84
S2M86 43 86
S2M88 44 88
S2M90 45 90
S2M92 46 92
S2M94 47 94
S2M96 48 96
S2M98 49 98
S2M100 50 100
S2M102 51 102
S2M104 52 104
S2M106 53 106
S2M108 54 108
S2M110 55 110
S2M112 56 112
S2M114 57 114
S2M116 58 116
S2M118 59 118
S2M120 60 120
S2M122 61 122
S2M124 62 124
S2M126 63 126
S2M128 64 128
S2M130 65 130
S2M132 66 132
S2M134 67 134
S2M136 68 136
S2M138 69 138
S2M140 70 140
S2M142 71 142
S2M144 72 144
S2M146 73 146
S2M148 74 148
S2M150 75 150
S2M152 76 152
S2M156 78 156
S2M158 79 158
S2M160 80 160
S2M164 82 164
S2M166 83 166
S2M168 84 168
S2M170 85 170
S2M172 86 172
S2M174 87 174
S2M176 88 176
S2M178 89 178
S2M180 90 180
S2M182 91 182
S2M184 92 184
S2M186 93 186
S2M188 94 188
S2M190 95 190
S2M192 96 192
S2M194 97 194
S2M196 98 196
S2M198 99 198
S2M200 100 200
S2M202 101 202
S2M204 102 204
S2M206 103 206
S2M208 104 208
S2M210 105 210
S2M212 106 212
S2M214 107 214
S2M216 108 216
S2M220 110 220
S2M224 112 224
S2M226 113 226
S2M230 115 230
S2M232 116 232
S2M234 117 234
S2M236 118 236
S2M238 119 238
S2M240 120 240
S2M242 121 242
S2M244 122 244
S2M246 123 246
S2M248 124 248
S2M250 125 250
S2M252 126 252
S2M254 127 254
S2M256 128 256
S2M258 129 258
S2M260 130 260
S2M262 131 262
S2M264 132 264
S2M266 133 266
S2M268 134 268
S2M270 135 270
S2M272 136 272
S2M276 138 276
S2M278 139 278
S2M280 140 280
S2M286 143 286
S2M288 144 288
S2M290 145 290
S2M292 146 292
S2M296 148 296
S2M300 150 300
S2M302 151 302
S2M304 152 304
S2M306 153 306
S2M308 154 308
S2M310 155 310
S2M312 156 312
S2M316 158 316
S2M318 159 318
ベルト呼び長さ 歯数 ベルトピッチ周長(mm)
S2M320 160 320
S2M322 161 322
S2M324 162 324
S2M326 163 326
S2M328 164 328
S2M330 165 330
S2M334 167 334
S2M338 169 338
S2M340 170 340
S2M342 171 342
S2M344 172 344
S2M350 175 350
S2M354 177 354
S2M360 180 360
S2M364 182 364
S2M370 185 370
S2M372 186 372
S2M374 187 374
S2M376 188 376
S2M380 190 380
S2M386 193 386
S2M390 195 390
S2M396 198 396
S2M400 200 400
S2M402 201 402
S2M408 204 408
S2M410 205 410
S2M420 210 420
S2M426 213 426
S2M430 215 430
S2M434 217 434
S2M436 218 436
S2M438 219 438
S2M440 220 440
S2M442 221 442
S2M444 222 444
S2M448 224 448
S2M452 226 452
S2M456 228 456
S2M460 230 460
S2M464 232 464
S2M468 234 468
S2M474 237 474
S2M476 238 476
S2M480 240 480
S2M486 243 486
S2M494 247 494
S2M500 250 500
S2M520 260 520
S2M524 262 524
S2M530 265 530
S2M550 275 550
S2M560 280 560
S2M572 286 572
S2M586 293 586
S2M594 297 594
S2M600 300 600
S2M630 315 630
S2M638 319 638
S2M648 324 648
S2M656 328 656
S2M660 330 660
S2M672 336 672
S2M676 338 676
S2M694 347 694
S2M710 355 710
S2M726 363 726
S2M740 370 740
S2M742 371 742
S2M752 376 752
S2M772 386 772
S2M778 389 778
S2M796 398 796
S2M800 400 800
S2M810 405 810
S2M822 411 822
S2M826 413 826
S2M828 414 828
S2M848 424 848
S2M856 428 856
S2M862 431 862
S2M866 433 866
S2M880 440 880
S2M882 441 882
S2M898 449 898
S2M900 450 900
S2M910 455 910
S2M930 465 930
S2M944 472 944
S2M950 475 950
S2M976 488 976
S2M984 492 984
S2M1016 508 1016
S2M1062 531 1062
S2M1064 532 1064
S2M1066 533 1066
S2M1100 550 1100
S2M1110 555 1110
S2M1136 568 1136
S2M1140 570 1140
S2M1148 574 1148
S2M1196 598 1196
S2M1224 612 1224
S2M1250 625 1250
S2M1274 637 1274
S2M1290 645 1290
S2M1330 665 1330
S2M1420 710 1420
S2M1516 758 1516
S2M1524 762 1524
S2M1878 939 1878
S2M2130 1065 2130
