サイズ表
メガトルクG (MTS5M)

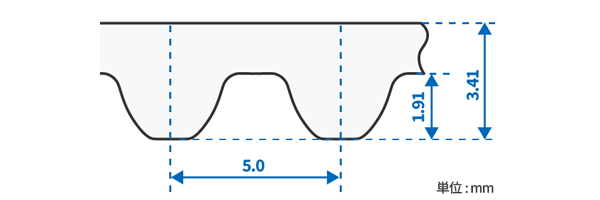

標準ベルトサイズ MTS5M
標準ベルト幅

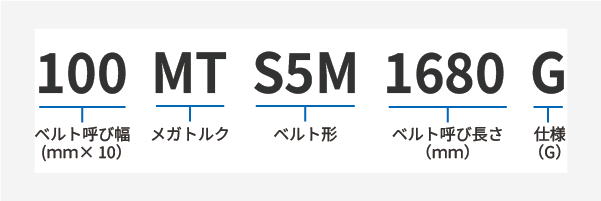

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS5M225 G |
45 |
225 |
| MTS5M255 G |
51 |
255 |
| MTS5M260 G |
52 |
260 |
| MTS5M285 G |
57 |
285 |
| MTS5M295 G |
59 |
295 |
| MTS5M300 G |
60 |
300 |
| MTS5M305 G |
61 |
305 |
| MTS5M320 G |
64 |
320 |
| MTS5M325 G |
65 |
325 |
| MTS5M340 G |
68 |
340 |
| MTS5M350 G |
70 |
350 |
| MTS5M360 G |
72 |
360 |
| MTS5M375 G |
75 |
375 |
| MTS5M380 G |
76 |
380 |
| MTS5M385 G |
77 |
385 |
| MTS5M390 G |
78 |
390 |
| MTS5M395 G |
79 |
395 |
| MTS5M400 G |
80 |
400 |
| MTS5M405 G |
81 |
405 |
| MTS5M410 G |
82 |
410 |
| MTS5M420 G |
84 |
420 |
| MTS5M425 G |
85 |
425 |
| MTS5M430 G |
86 |
430 |
| MTS5M435 G |
87 |
435 |
| MTS5M440 G |
88 |
440 |
| MTS5M450 G |
90 |
450 |
| MTS5M460 G |
92 |
460 |
| MTS5M465 G |
93 |
465 |
| MTS5M470 G |
94 |
470 |
| MTS5M475 G |
95 |
475 |
| MTS5M490 G |
98 |
490 |
| MTS5M500 G |
100 |
500 |
| MTS5M520 G |
104 |
520 |
| MTS5M525 G |
105 |
525 |
| MTS5M530 G |
106 |
530 |
| MTS5M545 G |
109 |
545 |
| MTS5M550 G |
110 |
550 |
| MTS5M560 G |
112 |
560 |
| MTS5M575 G |
115 |
575 |
| MTS5M590 G |
118 |
590 |
| MTS5M595 G |
119 |
595 |
| MTS5M600 G |
120 |
600 |
| MTS5M615 G |
123 |
615 |
| MTS5M625 G |
125 |
625 |
| MTS5M640 G |
128 |
640 |
| MTS5M650 G |
130 |
650 |
| MTS5M665 G |
133 |
665 |
| MTS5M670 G |
134 |
670 |
| MTS5M675 G |
135 |
675 |
| MTS5M690 G |
138 |
690 |
| MTS5M695 G |
139 |
695 |
| MTS5M700 G |
140 |
700 |
| MTS5M710 G |
142 |
710 |
| MTS5M720 G |
144 |
720 |
| MTS5M725 G |
145 |
725 |
| MTS5M730 G |
146 |
730 |
| MTS5M740 G |
148 |
740 |
| MTS5M750 G |
150 |
750 |
| MTS5M765 G |
153 |
765 |
| MTS5M770 G |
154 |
770 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS5M780 G |
156 |
780 |
| MTS5M800 G |
160 |
800 |
| MTS5M810 G |
162 |
810 |
| MTS5M830 G |
166 |
830 |
| MTS5M845 G |
169 |
845 |
| MTS5M850 G |
170 |
850 |
| MTS5M870 G |
174 |
870 |
| MTS5M890 G |
178 |
890 |
| MTS5M900 G |
180 |
900 |
| MTS5M930 G |
186 |
930 |
| MTS5M950 G |
190 |
950 |
| MTS5M965 G |
193 |
965 |
| MTS5M975 G |
195 |
975 |
| MTS5M980 G |
196 |
980 |
| MTS5M1000 G |
200 |
1000 |
| MTS5M1025 G |
205 |
1025 |
| MTS5M1050 G |
210 |
1050 |
| MTS5M1055 G |
211 |
1055 |
| MTS5M1085 G |
217 |
1085 |
| MTS5M1090 G |
218 |
1090 |
| MTS5M1100 G |
220 |
1100 |
| MTS5M1105 G |
221 |
1105 |
| MTS5M1115 G |
223 |
1115 |
| MTS5M1120 G |
224 |
1120 |
| MTS5M1125 G |
225 |
1125 |
| MTS5M1135 G |
227 |
1135 |
| MTS5M1145 G |
229 |
1145 |
| MTS5M1160 G |
232 |
1160 |
| MTS5M1165 G |
233 |
1165 |
| MTS5M1195 G |
239 |
1195 |
| MTS5M1200 G |
240 |
1200 |
| MTS5M1225 G |
245 |
1225 |
| MTS5M1250 G |
250 |
1250 |
| MTS5M1270 G |
254 |
1270 |
| MTS5M1290 G |
258 |
1290 |
| MTS5M1295 G |
259 |
1295 |
| MTS5M1350 G |
270 |
1350 |
| MTS5M1420 G |
284 |
1420 |
| MTS5M1475 G |
295 |
1475 |
| MTS5M1500 G |
300 |
1500 |
| MTS5M1505 G |
301 |
1505 |
| MTS5M1530 G |
306 |
1530 |
| MTS5M1595 G |
319 |
1595 |
| MTS5M1605 G |
321 |
1605 |
| MTS5M1615 G |
323 |
1615 |
| MTS5M1660 G |
332 |
1660 |
| MTS5M1680 G |
336 |
1680 |
| MTS5M1690 G |
338 |
1690 |
| MTS5M1715 G |
343 |
1715 |
| MTS5M1800 G |
360 |
1800 |
| MTS5M1945 G |
389 |
1945 |
| MTS5M2000 G |
400 |
2000 |
| MTS5M2145 G |
429 |
2145 |
| MTS5M2255 G |
451 |
2255 |
| MTS5M2480 G |
496 |
2480 |
| MTS5M2525 G |
505 |
2525 |
| MTS5M2670 G |
534 |
2670 |
| MTS5M2870 G |
574 |
2870 |
| MTS5M2980 G |
596 |
2980 |
| MTS5M3090 G |
618 |
3090 |
| MTS5M3180 G |
636 |
3180 |
| MTS5M3270 G |
654 |
3270 |
| MTS5M3480 G |
696 |
3480 |
