サイズ表
ダブルタイミングベルトG (DH)

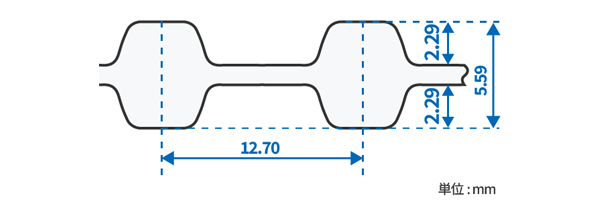

標準ベルトサイズ DH
標準ベルト幅

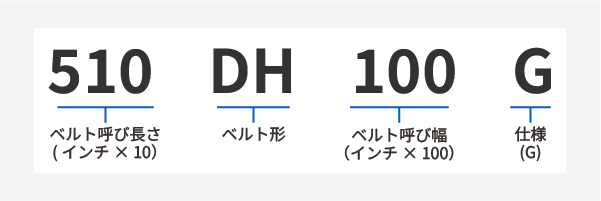

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| 240DH |
48 |
609.60 |
| 245DH |
49 |
622.30 |
| 255DH |
51 |
647.70 |
| 270DH |
54 |
685.80 |
| 280DH |
56 |
711.20 |
| 300DH |
60 |
762.00 |
| 310DH |
62 |
787.40 |
| 315DH |
63 |
800.10 |
| 320DH |
64 |
812.80 |
| 330DH |
66 |
838.20 |
| 340DH |
68 |
863.60 |
| 350DH |
70 |
889.00 |
| 360DH |
72 |
914.40 |
| 370DH |
74 |
939.80 |
| 375DH |
75 |
952.50 |
| 390DH |
78 |
990.60 |
| 400DH |
80 |
1016.00 |
| 410DH |
82 |
1041.40 |
| 420DH |
84 |
1066.80 |
| 430DH |
86 |
1092.20 |
| 450DH |
90 |
1143.00 |
| 465DH |
93 |
1181.10 |
| 480DH |
96 |
1219.20 |
| 490DH |
98 |
1244.60 |
| 510DH |
102 |
1295.40 |
| 530DH |
106 |
1346.20 |
| 540DH |
108 |
1371.60 |
| 560DH |
112 |
1422.40 |
| 565DH |
113 |
1435.10 |
| 570DH |
114 |
1447.80 |
| 580DH |
116 |
1473.20 |
| 600DH |
120 |
1524.00 |
| 605DH |
121 |
1536.70 |
| 625DH |
125 |
1587.50 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| 630DH |
126 |
1600.20 |
| 640DH |
128 |
1625.60 |
| 650DH |
130 |
1651.00 |
| 660DH |
132 |
1676.40 |
| 680DH |
136 |
1727.20 |
| 700DH |
140 |
1778.00 |
| 730DH |
146 |
1854.20 |
| 750DH |
150 |
1905.00 |
| 770DH |
154 |
1955.80 |
| 800DH |
160 |
2032.00 |
| 810DH |
162 |
2057.40 |
| 840DH |
168 |
2133.60 |
| 850DH |
170 |
2159.00 |
| 860DH |
172 |
2184.40 |
| 880DH |
176 |
2235.20 |
| 900DH |
180 |
2286.00 |
| 950DH |
190 |
2413.00 |
| 1000DH |
200 |
2540.00 |
| 1020DH |
204 |
2590.80 |
| 1100DH |
220 |
2794.00 |
| 1120DH |
224 |
2844.80 |
| 1130DH |
226 |
2870.20 |
| 1140DH |
228 |
2895.60 |
| 1150DH |
230 |
2921.00 |
| 1160DH |
232 |
2946.40 |
| 1250DH |
250 |
3175.00 |
| 1285DH |
257 |
3263.90 |
| 1325DH |
265 |
3365.50 |
| 1345DH |
269 |
3416.30 |
| 1350DH |
270 |
3429.00 |
| 1360DH |
272 |
3454.40 |
| 1400DH |
280 |
3556.00 |
| 1700DH |
340 |
4318.00 |
| 1765DH |
353 |
4483.10 |
