サイズ表
タイミングベルトG (XL)

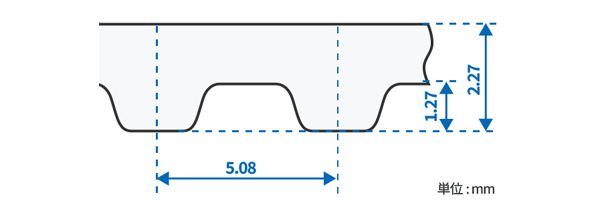

標準ベルトサイズ XL
標準ベルト幅

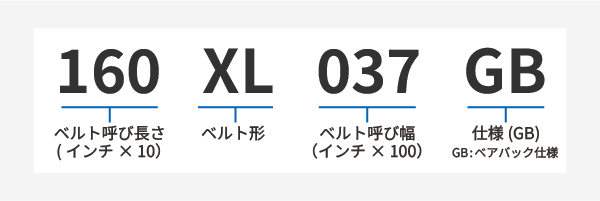

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| 60XL |
30 |
152.40 |
| 64XL |
32 |
162.56 |
| 68XL |
34 |
172.72 |
| 70XL |
35 |
177.80 |
| 74XL |
37 |
187.96 |
| 76XL |
38 |
193.04 |
| 78XL |
39 |
198.12 |
| 80XL |
40 |
203.20 |
| 82XL |
41 |
208.28 |
| 84XL |
42 |
213.36 |
| 86XL |
43 |
218.44 |
| 88XL |
44 |
223.52 |
| 90XL |
45 |
228.60 |
| 92XL |
46 |
233.68 |
| 94XL |
47 |
238.76 |
| 96XL |
48 |
243.84 |
| 98XL |
49 |
248.92 |
| 100XL |
50 |
254.00 |
| 102XL |
51 |
259.08 |
| 104XL |
52 |
264.16 |
| 106XL |
53 |
269.24 |
| 108XL |
54 |
274.32 |
| 110XL |
55 |
279.40 |
| 112XL |
56 |
284.48 |
| 114XL |
57 |
289.56 |
| 116XL |
58 |
294.64 |
| 118XL |
59 |
299.72 |
| 120XL |
60 |
304.80 |
| 122XL |
61 |
309.88 |
| 124XL |
62 |
314.96 |
| 126XL |
63 |
320.04 |
| 128XL |
64 |
325.12 |
| 130XL |
65 |
330.20 |
| 134XL |
67 |
340.36 |
| 136XL |
68 |
345.44 |
| 138XL |
69 |
350.52 |
| 140XL |
70 |
355.60 |
| 142XL |
71 |
360.68 |
| 144XL |
72 |
365.76 |
| 146XL |
73 |
370.84 |
| 148XL |
74 |
375.92 |
| 150XL |
75 |
381.00 |
| 152XL |
76 |
386.08 |
| 154XL |
77 |
391.16 |
| 156XL |
78 |
396.24 |
| 158XL |
79 |
401.32 |
| 160XL |
80 |
406.40 |
| 162XL |
81 |
411.48 |
| 164XL |
82 |
416.56 |
| 166XL |
83 |
421.64 |
| 168XL |
84 |
426.72 |
| 170XL |
85 |
431.80 |
| 172XL |
86 |
436.88 |
| 174XL |
87 |
441.96 |
| 176XL |
88 |
447.04 |
| 178XL |
89 |
452.12 |
| 180XL |
90 |
457.20 |
| 182XL |
91 |
462.28 |
| 184XL |
92 |
467.36 |
| 186XL |
93 |
472.44 |
| 188XL |
94 |
477.52 |
| 190XL |
95 |
482.60 |
| 192XL |
96 |
487.68 |
| 194XL |
97 |
492.76 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| 196XL |
98 |
497.84 |
| 198XL |
99 |
502.92 |
| 200XL |
100 |
508.00 |
| 202XL |
101 |
513.08 |
| 204XL |
102 |
518.16 |
| 206XL |
103 |
523.24 |
| 210XL |
105 |
533.40 |
| 212XL |
106 |
538.48 |
| 216XL |
108 |
548.64 |
| 218XL |
109 |
553.72 |
| 220XL |
110 |
558.80 |
| 228XL |
114 |
579.12 |
| 230XL |
115 |
584.20 |
| 234XL |
117 |
594.36 |
| 236XL |
118 |
599.44 |
| 240XL |
120 |
609.60 |
| 250XL |
125 |
635.00 |
| 254XL |
127 |
645.16 |
| 260XL |
130 |
660.40 |
| 270XL |
135 |
685.80 |
| 276XL |
138 |
701.04 |
| 280XL |
140 |
711.20 |
| 282XL |
141 |
716.28 |
| 290XL |
145 |
736.60 |
| 300XL |
150 |
762.00 |
| 310XL |
155 |
787.40 |
| 314XL |
157 |
797.56 |
| 320XL |
160 |
812.80 |
| 330XL |
165 |
838.20 |
| 332XL |
166 |
843.28 |
| 340XL |
170 |
863.60 |
| 348XL |
174 |
883.92 |
| 352XL |
176 |
894.08 |
| 360XL |
180 |
914.40 |
| 364XL |
182 |
924.56 |
| 370XL |
185 |
939.80 |
| 376XL |
188 |
955.04 |
| 380XL |
190 |
965.20 |
| 384XL |
192 |
975.36 |
| 388XL |
194 |
985.52 |
| 390XL |
195 |
990.60 |
| 396XL |
198 |
1005.84 |
| 414XL |
207 |
1051.56 |
| 424XL |
212 |
1076.96 |
| 450XL |
225 |
1143.00 |
| 460XL |
230 |
1168.40 |
| 478XL |
239 |
1214.12 |
| 480XL |
240 |
1219.20 |
| 490XL |
245 |
1244.60 |
| 522XL |
261 |
1325.88 |
| 532XL |
266 |
1351.28 |
| 540XL |
270 |
1371.60 |
| 552XL |
276 |
1402.08 |
| 564XL |
282 |
1432.56 |
| 592XL |
296 |
1503.68 |
| 600XL |
300 |
1524.00 |
| 616XL |
308 |
1564.64 |
| 630XL |
315 |
1600.20 |
| 670XL |
335 |
1701.80 |
| 690XL |
345 |
1752.60 |
| 754XL |
377 |
1915.16 |
| 828XL |
414 |
2103.12 |
| 860XL |
430 |
2184.40 |
