サイズ表
スーパートルクG (S8M)

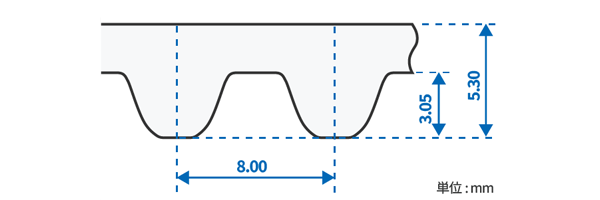

標準ベルトサイズ S8M
標準ベルト幅

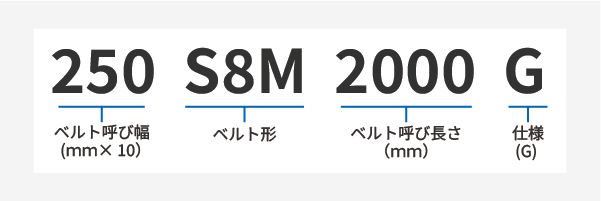

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S8M376 |
47 |
376 |
| S8M400 |
50 |
400 |
| S8M408 |
51 |
408 |
| S8M440 |
55 |
440 |
| S8M480 |
60 |
480 |
| S8M496 |
62 |
496 |
| S8M512 |
64 |
512 |
| S8M520 |
65 |
520 |
| S8M528 |
66 |
528 |
| S8M560 |
70 |
560 |
| S8M584 |
73 |
584 |
| S8M600 |
75 |
600 |
| S8M632 |
79 |
632 |
| S8M640 |
80 |
640 |
| S8M656 |
82 |
656 |
| S8M680 |
85 |
680 |
| S8M712 |
89 |
712 |
| S8M720 |
90 |
720 |
| S8M760 |
95 |
760 |
| S8M800 |
100 |
800 |
| S8M824 |
103 |
824 |
| S8M840 |
105 |
840 |
| S8M848 |
106 |
848 |
| S8M856 |
107 |
856 |
| S8M880 |
110 |
880 |
| S8M896 |
112 |
896 |
| S8M912 |
114 |
912 |
| S8M920 |
115 |
920 |
| S8M928 |
116 |
928 |
| S8M944 |
118 |
944 |
| S8M952 |
119 |
952 |
| S8M960 |
120 |
960 |
| S8M976 |
122 |
976 |
| S8M984 |
123 |
984 |
| S8M1000 |
125 |
1000 |
| S8M1024 |
128 |
1024 |
| S8M1040 |
130 |
1040 |
| S8M1056 |
132 |
1056 |
| S8M1080 |
135 |
1080 |
| S8M1096 |
137 |
1096 |
| S8M1120 |
140 |
1120 |
| S8M1128 |
141 |
1128 |
| S8M1136 |
142 |
1136 |
| S8M1152 |
144 |
1152 |
| S8M1160 |
145 |
1160 |
| S8M1184 |
148 |
1184 |
| S8M1200 |
150 |
1200 |
| S8M1216 |
152 |
1216 |
| S8M1224 |
153 |
1224 |
| S8M1248 |
156 |
1248 |
| S8M1256 |
157 |
1256 |
| S8M1280 |
160 |
1280 |
| S8M1296 |
162 |
1296 |
| S8M1304 |
163 |
1304 |
| S8M1312 |
164 |
1312 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S8M1320 |
165 |
1320 |
| S8M1352 |
169 |
1352 |
| S8M1360 |
170 |
1360 |
| S8M1384 |
173 |
1384 |
| S8M1400 |
175 |
1400 |
| S8M1424 |
178 |
1424 |
| S8M1440 |
180 |
1440 |
| S8M1480 |
185 |
1480 |
| S8M1488 |
186 |
1488 |
| S8M1520 |
190 |
1520 |
| S8M1552 |
194 |
1552 |
| S8M1600 |
200 |
1600 |
| S8M1640 |
205 |
1640 |
| S8M1648 |
206 |
1648 |
| S8M1680 |
210 |
1680 |
| S8M1696 |
212 |
1696 |
| S8M1728 |
216 |
1728 |
| S8M1760 |
220 |
1760 |
| S8M1776 |
222 |
1776 |
| S8M1792 |
224 |
1792 |
| S8M1800 |
225 |
1800 |
| S8M1816 |
227 |
1816 |
| S8M1832 |
229 |
1832 |
| S8M1880 |
235 |
1880 |
| S8M1912 |
239 |
1912 |
| S8M1960 |
245 |
1960 |
| S8M2000 |
250 |
2000 |
| S8M2040 |
255 |
2040 |
| S8M2048 |
256 |
2048 |
| S8M2064 |
258 |
2064 |
| S8M2104 |
263 |
2104 |
| S8M2120 |
265 |
2120 |
| S8M2160 |
270 |
2160 |
| S8M2240 |
280 |
2240 |
| S8M2272 |
284 |
2272 |
| S8M2304 |
288 |
2304 |
| S8M2376 |
297 |
2376 |
| S8M2400 |
300 |
2400 |
| S8M2496 |
312 |
2496 |
| S8M2600 |
325 |
2600 |
| S8M2800 |
350 |
2800 |
| S8M2920 |
365 |
2920 |
| S8M2944 |
368 |
2944 |
| S8M3048 |
381 |
3048 |
| S8M3200 |
400 |
3200 |
| S8M3248 |
406 |
3248 |
| S8M3272 |
409 |
3272 |
| S8M3440 |
430 |
3440 |
| S8M3680 |
460 |
3680 |
| S8M3720 |
465 |
3720 |
| S8M3904 |
488 |
3904 |
| S8M3928 |
491 |
3928 |
| S8M4400 |
550 |
4400 |
