サイズ表
スーパートルクG (S5M)

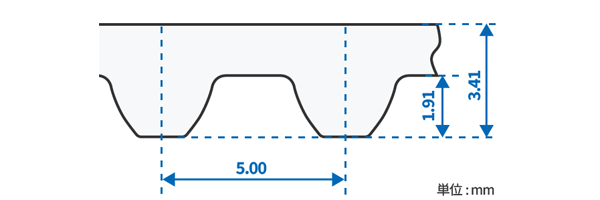

標準ベルトサイズ S5M
標準ベルト幅

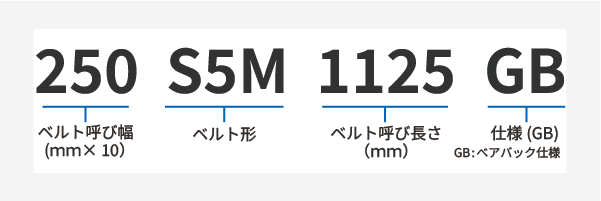

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S5M225 |
45 |
225 |
| S5M255 |
51 |
255 |
| S5M260 |
52 |
260 |
| S5M285 |
57 |
285 |
| S5M295 |
59 |
295 |
| S5M300 |
60 |
300 |
| S5M305 |
61 |
305 |
| S5M320 |
64 |
320 |
| S5M325 |
65 |
325 |
| S5M340 |
68 |
340 |
| S5M350 |
70 |
350 |
| S5M360 |
72 |
360 |
| S5M375 |
75 |
375 |
| S5M380 |
76 |
380 |
| S5M385 |
77 |
385 |
| S5M390 |
78 |
390 |
| S5M395 |
79 |
395 |
| S5M400 |
80 |
400 |
| S5M405 |
81 |
405 |
| S5M410 |
82 |
410 |
| S5M420 |
84 |
420 |
| S5M425 |
85 |
425 |
| S5M430 |
86 |
430 |
| S5M435 |
87 |
435 |
| S5M440 |
88 |
440 |
| S5M450 |
90 |
450 |
| S5M460 |
92 |
460 |
| S5M465 |
93 |
465 |
| S5M470 |
94 |
470 |
| S5M475 |
95 |
475 |
| S5M490 |
98 |
490 |
| S5M500 |
100 |
500 |
| S5M520 |
104 |
520 |
| S5M525 |
105 |
525 |
| S5M530 |
106 |
530 |
| S5M545 |
109 |
545 |
| S5M550 |
110 |
550 |
| S5M560 |
112 |
560 |
| S5M575 |
115 |
575 |
| S5M590 |
118 |
590 |
| S5M595 |
119 |
595 |
| S5M600 |
120 |
600 |
| S5M615 |
123 |
615 |
| S5M625 |
125 |
625 |
| S5M640 |
128 |
640 |
| S5M650 |
130 |
650 |
| S5M665 |
133 |
665 |
| S5M670 |
134 |
670 |
| S5M675 |
135 |
675 |
| S5M690 |
138 |
690 |
| S5M695 |
139 |
695 |
| S5M700 |
140 |
700 |
| S5M710 |
142 |
710 |
| S5M720 |
144 |
720 |
| S5M725 |
145 |
725 |
| S5M730 |
146 |
730 |
| S5M740 |
148 |
740 |
| S5M750 |
150 |
750 |
| S5M765 |
153 |
765 |
| S5M770 |
154 |
770 |
| S5M780 |
156 |
780 |
| S5M800 |
160 |
800 |
| S5M810 |
162 |
810 |
| S5M830 |
166 |
830 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S5M845 |
169 |
845 |
| S5M850 |
170 |
850 |
| S5M870 |
174 |
870 |
| S5M890 |
178 |
890 |
| S5M900 |
180 |
900 |
| S5M930 |
186 |
930 |
| S5M950 |
190 |
950 |
| S5M965 |
193 |
965 |
| S5M975 |
195 |
975 |
| S5M980 |
196 |
980 |
| S5M1000 |
200 |
1000 |
| S5M1025 |
205 |
1025 |
| S5M1050 |
210 |
1050 |
| S5M1055 |
211 |
1055 |
| S5M1085 |
217 |
1085 |
| S5M1090 |
218 |
1090 |
| S5M1100 |
220 |
1100 |
| S5M1105 |
221 |
1105 |
| S5M1115 |
223 |
1115 |
| S5M1120 |
224 |
1120 |
| S5M1125 |
225 |
1125 |
| S5M1135 |
227 |
1135 |
| S5M1145 |
229 |
1145 |
| S5M1160 |
232 |
1160 |
| S5M1165 |
233 |
1165 |
| S5M1195 |
239 |
1195 |
| S5M1200 |
240 |
1200 |
| S5M1225 |
245 |
1225 |
| S5M1250 |
250 |
1250 |
| S5M1270 |
254 |
1270 |
| S5M1290 |
258 |
1290 |
| S5M1295 |
259 |
1295 |
| S5M1350 |
270 |
1350 |
| S5M1420 |
284 |
1420 |
| S5M1475 |
295 |
1475 |
| S5M1500 |
300 |
1500 |
| S5M1505 |
301 |
1505 |
| S5M1530 |
306 |
1530 |
| S5M1595 |
319 |
1595 |
| S5M1605 |
321 |
1605 |
| S5M1615 |
323 |
1615 |
| S5M1660 |
332 |
1660 |
| S5M1680 |
336 |
1680 |
| S5M1690 |
338 |
1690 |
| S5M1715 |
343 |
1715 |
| S5M1800 |
360 |
1800 |
| S5M1945 |
389 |
1945 |
| S5M2000 |
400 |
2000 |
| S5M2145 |
429 |
2145 |
| S5M2255 |
451 |
2255 |
| S5M2480 |
496 |
2480 |
| S5M2525 |
505 |
2525 |
| S5M2670 |
534 |
2670 |
| S5M2870 |
574 |
2870 |
| S5M2980 |
596 |
2980 |
| S5M3090 |
618 |
3090 |
| S5M3180 |
636 |
3180 |
| S5M3270 |
654 |
3270 |
| S5M3480 |
696 |
3480 |
