サイズ表
メガトルクG (MTS8M)

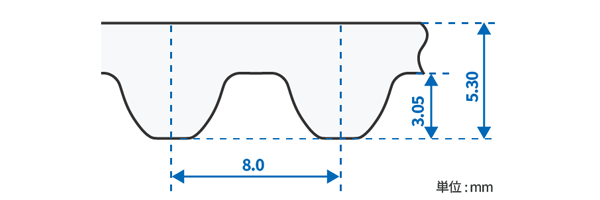

標準ベルトサイズ MTS8M
標準ベルト幅
製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS8M528 G |
66 |
528 |
| MTS8M560 G |
70 |
560 |
| MTS8M584 G |
73 |
584 |
| MTS8M600 G |
75 |
600 |
| MTS8M632 G |
79 |
632 |
| MTS8M640 G |
80 |
640 |
| MTS8M656 G |
82 |
656 |
| MTS8M712 G |
89 |
712 |
| MTS8M720 G |
90 |
720 |
| MTS8M760 G |
95 |
760 |
| MTS8M800 G |
100 |
800 |
| MTS8M824 G |
103 |
824 |
| MTS8M840 G |
105 |
840 |
| MTS8M848 G |
106 |
848 |
| MTS8M856 G |
107 |
856 |
| MTS8M880 G |
110 |
880 |
| MTS8M896 G |
112 |
896 |
| MTS8M912 G |
114 |
912 |
| MTS8M920 G |
115 |
920 |
| MTS8M928 G |
116 |
928 |
| MTS8M944 G |
118 |
944 |
| MTS8M952 G |
119 |
952 |
| MTS8M960 G |
120 |
960 |
| MTS8M976 G |
122 |
976 |
| MTS8M984 G |
123 |
984 |
| MTS8M1000 G |
125 |
1000 |
| MTS8M1024 G |
128 |
1024 |
| MTS8M1040 G |
130 |
1040 |
| MTS8M1056 G |
132 |
1056 |
| MTS8M1080 G |
135 |
1080 |
| MTS8M1096 G |
137 |
1096 |
| MTS8M1120 G |
140 |
1120 |
| MTS8M1128 G |
141 |
1128 |
| MTS8M1136 G |
142 |
1136 |
| MTS8M1152 G |
144 |
1152 |
| MTS8M1160 G |
145 |
1160 |
| MTS8M1184 G |
148 |
1184 |
| MTS8M1200 G |
150 |
1200 |
| MTS8M1216 G |
152 |
1216 |
| MTS8M1224 G |
153 |
1224 |
| MTS8M1248 G |
156 |
1248 |
| MTS8M1256 G |
157 |
1256 |
| MTS8M1280 G |
160 |
1280 |
| MTS8M1296 G |
162 |
1296 |
| MTS8M1304 G |
163 |
1304 |
| MTS8M1312 G |
164 |
1312 |
| MTS8M1320 G |
165 |
1320 |
| MTS8M1352 G |
169 |
1352 |
| MTS8M1360 G |
170 |
1360 |
| MTS8M1384 G |
173 |
1384 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS8M1400 G |
175 |
1400 |
| MTS8M1424 G |
178 |
1424 |
| MTS8M1440 G |
180 |
1440 |
| MTS8M1480 G |
185 |
1480 |
| MTS8M1488 G |
186 |
1488 |
| MTS8M1520 G |
190 |
1520 |
| MTS8M1552 G |
194 |
1552 |
| MTS8M1600 G |
200 |
1600 |
| MTS8M1640 G |
205 |
1640 |
| MTS8M1648 G |
206 |
1648 |
| MTS8M1680 G |
210 |
1680 |
| MTS8M1696 G |
212 |
1696 |
| MTS8M1728 G |
216 |
1728 |
| MTS8M1760 G |
220 |
1760 |
| MTS8M1776 G |
222 |
1776 |
| MTS8M1792 G |
224 |
1792 |
| MTS8M1800 G |
225 |
1800 |
| MTS8M1816 G |
227 |
1816 |
| MTS8M1832 G |
229 |
1832 |
| MTS8M1880 G |
235 |
1880 |
| MTS8M1912 G |
239 |
1912 |
| MTS8M1960 G |
245 |
1960 |
| MTS8M2000 G |
250 |
2000 |
| MTS8M2040 G |
255 |
2040 |
| MTS8M2048 G |
256 |
2048 |
| MTS8M2064 G |
258 |
2064 |
| MTS8M2104 G |
263 |
2104 |
| MTS8M2120 G |
265 |
2120 |
| MTS8M2160 G |
270 |
2160 |
| MTS8M2240 G |
280 |
2240 |
| MTS8M2272 G |
284 |
2272 |
| MTS8M2304 G |
288 |
2304 |
| MTS8M2376 G |
297 |
2376 |
| MTS8M2400 G |
300 |
2400 |
| MTS8M2496 G |
312 |
2496 |
| MTS8M2600 G |
325 |
2600 |
| MTS8M2800 G |
350 |
2800 |
| MTS8M2920 G |
365 |
2920 |
| MTS8M2944 G |
368 |
2944 |
| MTS8M3048 G |
381 |
3048 |
| MTS8M3200 G |
400 |
3200 |
| MTS8M3248 G |
406 |
3248 |
| MTS8M3272 G |
409 |
3272 |
| MTS8M3440 G |
430 |
3440 |
| MTS8M3680 G |
460 |
3680 |
| MTS8M3720 G |
465 |
3720 |
| MTS8M3904 G |
488 |
3904 |
| MTS8M3928 G |
491 |
3928 |
| MTS8M4400 G |
550 |
4400 |
