サイズ表
ギガトルクGX (G14M)

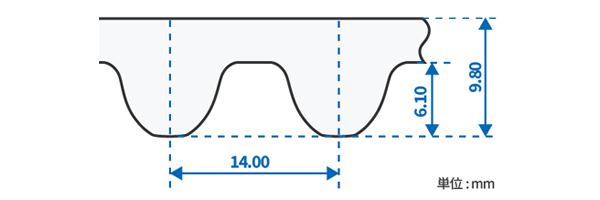

標準ベルトサイズ G14M
標準ベルト幅

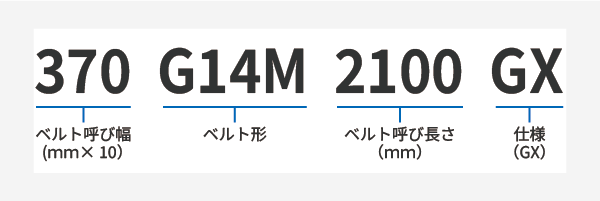

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| G14M966 |
69 |
966 |
| G14M994 |
71 |
994 |
| G14M1120 |
80 |
1120 |
| G14M1190 |
85 |
1190 |
| G14M1260 |
90 |
1260 |
| G14M1302 |
93 |
1302 |
| G14M1344 |
96 |
1344 |
| G14M1400 |
100 |
1400 |
| G14M1568 |
112 |
1568 |
| G14M1610 |
115 |
1610 |
| G14M1750 |
125 |
1750 |
| G14M1778 |
127 |
1778 |
| G14M1890 |
135 |
1890 |
| G14M1960 |
140 |
1960 |
| G14M2002 |
143 |
2002 |
| G14M2100 |
150 |
2100 |
| G14M2240 |
160 |
2240 |
| G14M2310 |
165 |
2310 |
| G14M2380 |
170 |
2380 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| G14M2450 |
175 |
2450 |
| G14M2520 |
180 |
2520 |
| G14M2590 |
185 |
2590 |
| G14M2660 |
190 |
2660 |
| G14M2730 |
195 |
2730 |
| G14M2800 |
200 |
2800 |
| G14M3136 |
224 |
3136 |
| G14M3150 |
225 |
3150 |
| G14M3304 |
236 |
3304 |
| G14M3360 |
240 |
3360 |
| G14M3500 |
250 |
3500 |
| G14M3850 |
275 |
3850 |
| G14M3920 |
280 |
3920 |
| G14M4144 |
296 |
4144 |
| G14M4326 |
309 |
4326 |
| G14M4410 |
315 |
4410 |
| G14M4578 |
327 |
4578 |
| G14M4956 |
354 |
4956 |
