サイズ表
スーパートルクG PLUS (S14M)
標準ベルトサイズ S14M
標準ベルト幅

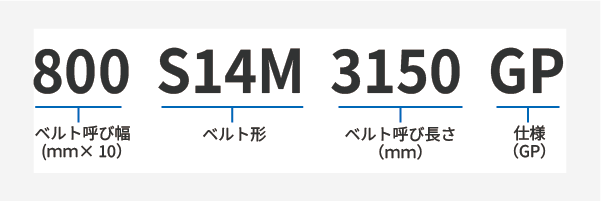

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S14M1008GP |
72 |
1008 |
| S14M1120GP |
80 |
1120 |
| S14M1190GP |
85 |
1190 |
| S14M1246GP |
89 |
1246 |
| S14M1288GP |
92 |
1288 |
| S14M1400GP |
100 |
1400 |
| S14M1470GP |
105 |
1470 |
| S14M1540GP |
110 |
1540 |
| S14M1610GP |
115 |
1610 |
| S14M1652GP |
118 |
1652 |
| S14M1708GP |
122 |
1708 |
| S14M1736GP |
124 |
1736 |
| S14M1750GP |
125 |
1750 |
| S14M1778GP |
127 |
1778 |
| S14M1806GP |
129 |
1806 |
| S14M1890GP |
135 |
1890 |
| S14M1932GP |
138 |
1932 |
| S14M1960GP |
140 |
1960 |
| S14M2002GP |
143 |
2002 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| S14M2100GP |
150 |
2100 |
| S14M2198GP |
157 |
2198 |
| S14M2240GP |
160 |
2240 |
| S14M2310GP |
165 |
2310 |
| S14M2380GP |
170 |
2380 |
| S14M2450GP |
175 |
2450 |
| S14M2506GP |
179 |
2506 |
| S14M2590GP |
185 |
2590 |
| S14M2660GP |
190 |
2660 |
| S14M2800GP |
200 |
2800 |
| S14M2940GP |
210 |
2940 |
| S14M3150GP |
225 |
3150 |
| S14M3360GP |
240 |
3360 |
| S14M3500GP |
250 |
3500 |
| S14M3556GP |
254 |
3556 |
| S14M3850GP |
275 |
3850 |
| S14M4004GP |
286 |
4004 |
| S14M4508GP |
322 |
4508 |
| S14M5012GP |
358 |
5012 |
