サイズ表

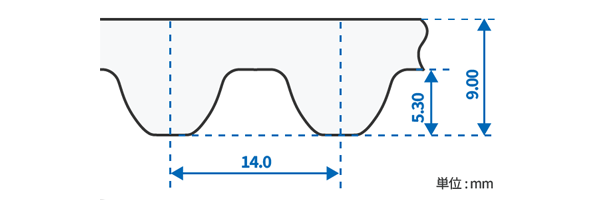

メガトルクGIII (MTS14M)
標準ベルトサイズ MTS14M
標準ベルト幅

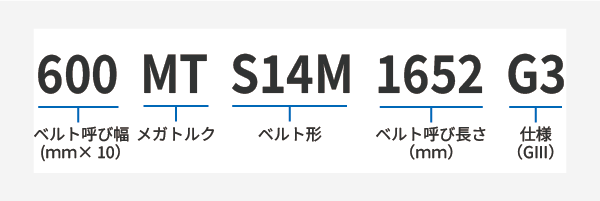

製品コード
プーリ
標準ベルトサイズ表
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS14M1008 G3 |
72 |
1008 |
| MTS14M1120 G3 |
80 |
1120 |
| MTS14M1190 G3 |
85 |
1190 |
| MTS14M1246 G3 |
89 |
1246 |
| MTS14M1288 G3 |
92 |
1288 |
| MTS14M1400 G3 |
100 |
1400 |
| MTS14M1470 G3 |
105 |
1470 |
| MTS14M1540 G3 |
110 |
1540 |
| MTS14M1610 G3 |
115 |
1610 |
| MTS14M1652 G3 |
118 |
1652 |
| MTS14M1708 G3 |
122 |
1708 |
| MTS14M1736 G3 |
124 |
1736 |
| MTS14M1750 G3 |
125 |
1750 |
| MTS14M1778 G3 |
127 |
1778 |
| MTS14M1806 G3 |
129 |
1806 |
| MTS14M1890 G3 |
135 |
1890 |
| MTS14M1932 G3 |
138 |
1932 |
| MTS14M1960 G3 |
140 |
1960 |
| MTS14M2002 G3 |
143 |
2002 |
| ベルト呼び長さ |
歯数 |
ベルトピッチ周長(mm) |
| MTS14M2100 G3 |
150 |
2100 |
| MTS14M2198 G3 |
157 |
2198 |
| MTS14M2240 G3 |
160 |
2240 |
| MTS14M2310 G3 |
165 |
2310 |
| MTS14M2380 G3 |
170 |
2380 |
| MTS14M2450 G3 |
175 |
2450 |
| MTS14M2506 G3 |
179 |
2506 |
| MTS14M2590 G3 |
185 |
2590 |
| MTS14M2660 G3 |
190 |
2660 |
| MTS14M2800 G3 |
200 |
2800 |
| MTS14M2940 G3 |
210 |
2940 |
| MTS14M3150 G3 |
225 |
3150 |
| MTS14M3360 G3 |
240 |
3360 |
| MTS14M3500 G3 |
250 |
3500 |
| MTS14M3556 G3 |
254 |
3556 |
| MTS14M3850 G3 |
275 |
3850 |
| MTS14M4004 G3 |
286 |
4004 |
| MTS14M4508 G3 |
322 |
4508 |
| MTS14M5012 G3 |
358 |
5012 |
